HELUSOUND® AES/EBU DMX TP BLACK
All items
Technical Data HELUSOUND® AES/EBU DMX TP BLACK
| Conductor resistance at 20°C | max. 85.0 Ohm/km |
| Loop resistance at 20°C | max. 170.0 Ohm/km |
Details HELUSOUND® AES/EBU DMX TP BLACK

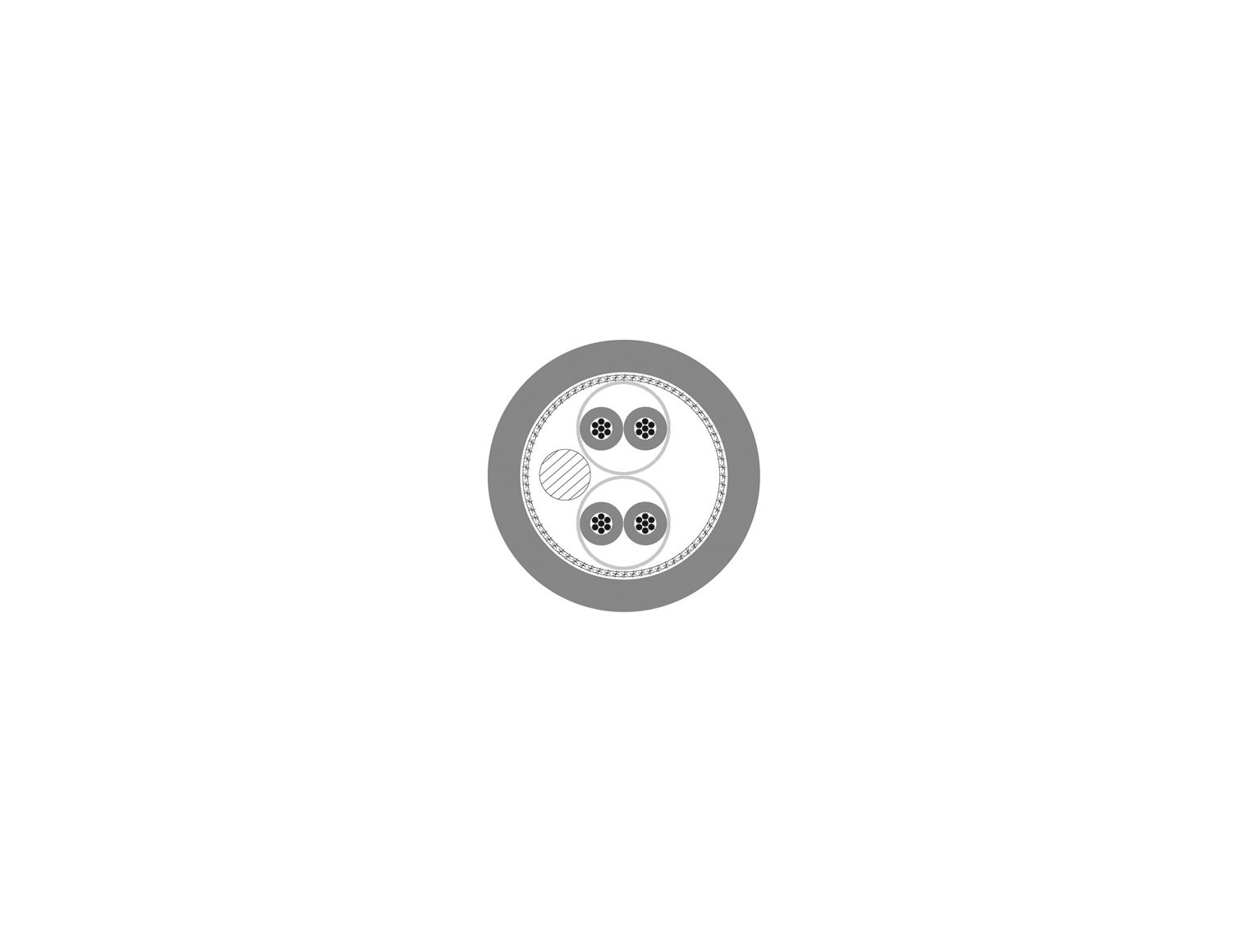

Cable Structure
-
- Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
-
- Core insulation: Foam PE
-
- ,
- pairs: No. 1: white-orange / orange
-
- 1. Screen: plastic-coated aluminium foil (St)
- 2. Screen: braided screen of tinned copper wires
-
- Outer sheath: PVC
-
- Sheath colour: black
Items HELUSOUND® AES/EBU DMX TP BLACK
|
Item description
Part no.
|
Outer Ø mm (approx.) | Cu factor per km | Weight kg/km (approx.) | Copper base in EUR / 100 kg |
|---|
