HELUSOUND® AES/EBU DMX S BLACK
Technical Data HELUSOUND® AES/EBU DMX S BLACK
| Conductor resistance at 20°C | max. 53.0 Ohm/km |
| Loop resistance at 20°C | max. 106.0 Ohm/km |
| Insulation resistance | min. 5.0 GOhm x km |
Details HELUSOUND® AES/EBU DMX S BLACK

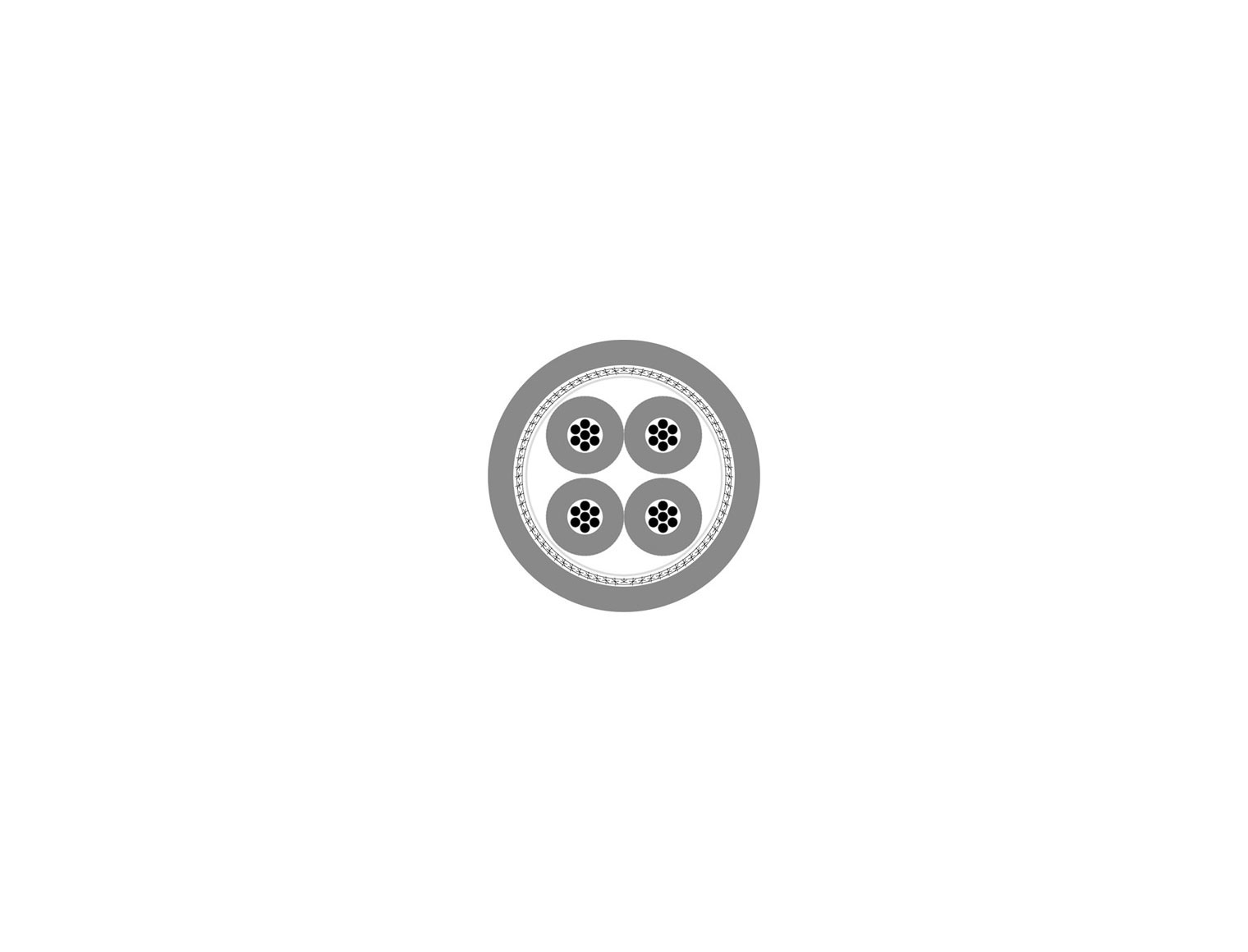

Cable Structure
-
- Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
-
- Core insulation: Foam PE
-
- Core identification: white, green, brown, yellow
-
- 1. Screen: plastic-coated aluminium foil (St)
- 2. Screen: braided screen of tinned copper wires
-
- Outer sheath: PVC
-
- Sheath colour: black
Properties
-
- for outdoor use
Items HELUSOUND® AES/EBU DMX S BLACK
|
Item description
Part no.
|
Outer Ø mm (approx.) | Cu factor per km | Weight kg/km (approx.) | Copper base in EUR / 100 kg |
|---|
